aluminum conductor ABC cable 16mm 25mm 35mm 50mm 70mm 95mm 120mm 150mm

FOB Reference Price:Get Latest Price
$1.00 - $15.00 / Meter | 1000 Meter/Meters (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Meters) 1 - 5000 >5000
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
Aobest
Model Number:
Al/XLPE
Type:
High Voltage
Application:
Overhead
Conductor Material:
Aluminum
Jacket:
no have
Insulation Material:
XLPE
Product name:
aluminum conductor ABC cable 16mm 25mm 35mm 50mm 70mm 95mm 120mm 150mm
Color:
Black
Standard:
ASTM
Certificate:
ISO9001/ISO14001 /OHSAS18001/CCC
Conductor:
Aluminum core
Sheath:
XLPE
MOQ:
1000 Meters
production time:
10days
Delivery time:
15days
warranty:
25years
Supply Ability
Supply Ability:
50 Kilometer/Kilometers per Month aluminum conductor ABC cable 16mm 25mm 35mm 50mm 70mm 95mm 120mm
Packaging & Delivery
Packaging Details
export standard by wooden drum
aluminum conductor ABC cable 16mm 25mm 35mm 50mm 70mm 95mm 120mm 150mm
Port
Shanghai
Lead Time :
Quantity(Meters) 1 - 5000 >5000
Est. Time(days) 15 To be negotiated
Product Description

aluminum conductor ABC cable 16mm 25mm 35mm 50mm 70mm 95mm 120mm 150mm


1.Application:

Service Drop Cables(ABC cable) are mainly used for electric power tranmission, rebuiding of urban and forest regions. They can improve safety and reliance of electrified wire netting.


2.Type of Service Drop Cable:

Service Drop Cable(ABC CABLE) covers mainly three types:
Duplex Service Drop

Triplex Service Drop

Quadruplex Service Drop

The cable can be produced whose construction is phase conductor with neutral bare conductor or phase conductor with insulated neutral conductor , etc. And we can still produce the cables according to the request of customers.

3. Detaild Introduction of Service Drop Cable

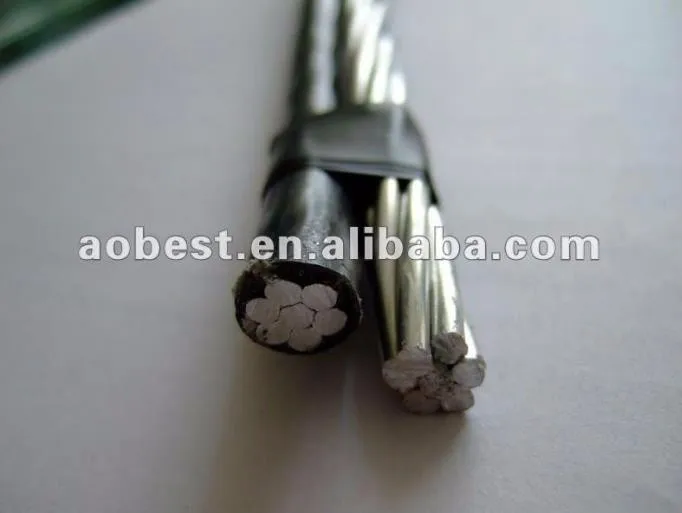

3.1 Duplex Service Drop
Application
To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75 maximum.
Construction
Concentic strand or cmpressed 1350-H19 conductor , polyethylene or cross linked polyethylene insulation, concentric strand AAC, ACSR, or 6201 alloy nertral messenger.

3.2 Triplex Service Drop
Application
To supply power from the ulility`s lines to the consumer`s weatherhead. For service at 600 volts or less(phase to phase ) at a conductor temperature of 75 maximum for PE insulation or 90 maximum for XLPE insulation .
Construction
Concentic strand or cmpressed 1350-H19 conductor , polyethylene or cross linked polyethylene insulation, concentric strand AAC, ACSR, or 6201 alloy nertral messenger.

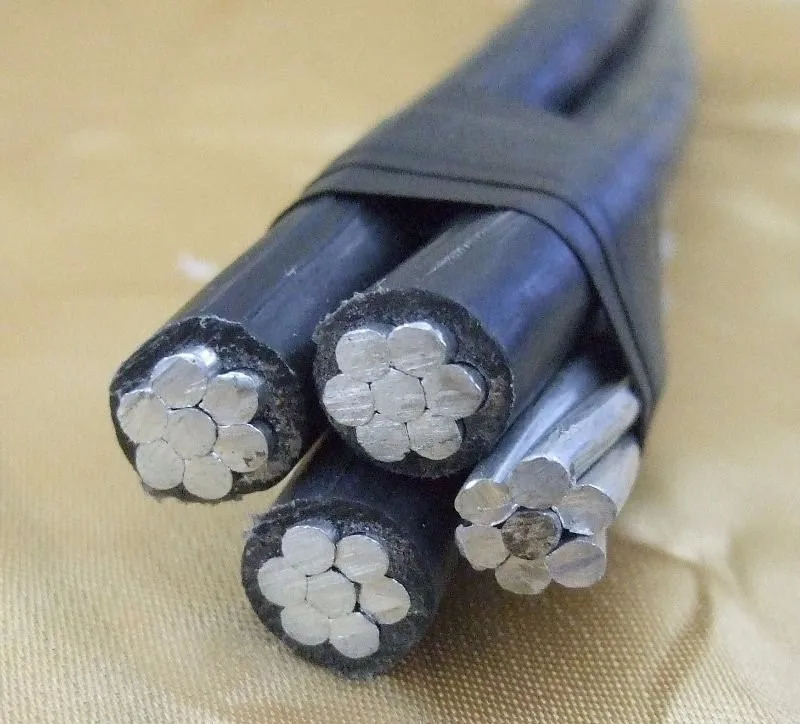

3.3 Quadruplex Service Drop
Application

Used to supply 3 phase power , usually from a pole-mounted transformer to the use`s servic head where connection to the service entance cable is made . To be used at voltages of 600 volts or less phase to phase and at conductor temperature not to exceed 75 for PE insulated conductors or 90 for XLPE insulated conductors.
Construction

Conductors are concentrically standed , compressed 1350-H19 aluminium . Insulated with either polyethylene or XLPE . Neutral messengers aer concentrically stranded 6210 AAAC , AAC or ACSR .


4.Standard

1. Aluminum Wire, 1350-H19 for Electrical Purposes.
2. Aluminum Conductors, Concentric-Lay-Stranded.
3. Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
4. Concentric-Lay-Stranded 6201-T81 Conductors
5.Compressed Round Stranded Aluminum Conductors Single Input Wire. It meets or exceeds all applicable requirements of ANSI/ICEA S-76-474

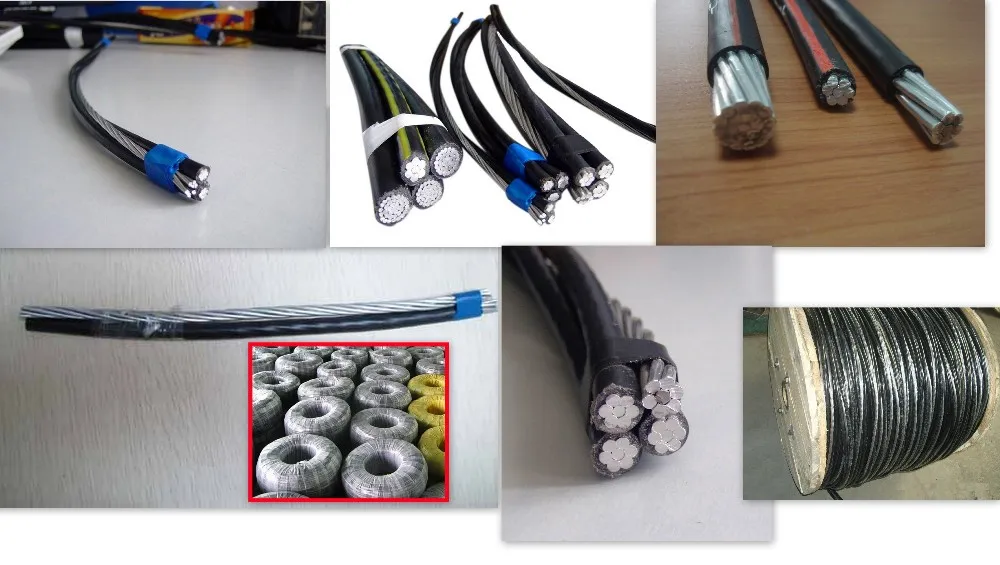

Detailed Images
Packing & Delivery

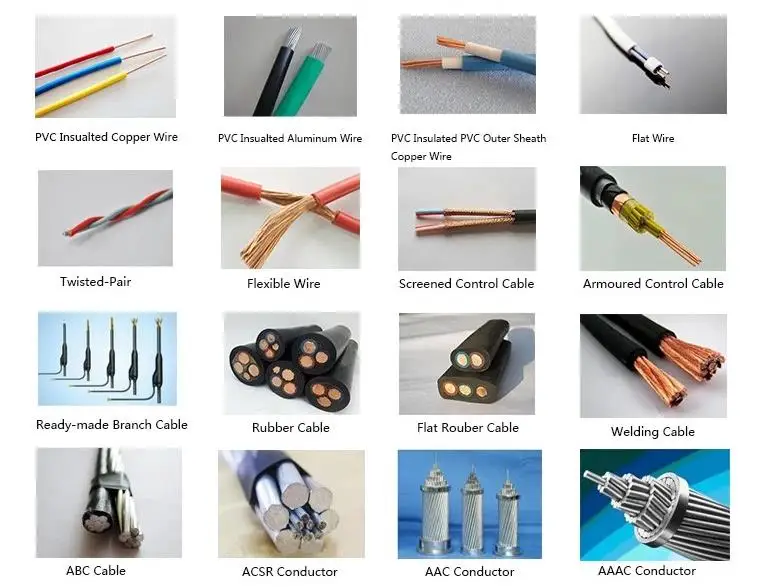

Our Products
Our Service


*Any inquiries will be replied within 24 hours.
*OEM/ODM available.
      1) Printing your logo on the cable.
      2) Printing your logo on the pull box, wooden drum according to your design
      3) Any your idea on cable, packing box are available.
*High quality, reasonable and competitive price, fast lead time.
      1) All products will have been strictly Quality Checked in house before packing.
      2) All products will be well packed before shipping.
*Faster delivery.:Sample order in stock, and 3-7 days for bulk production.
*Strong technical support (technical data, drawing, etc.)
*Free sample is available with economic express fee.
*Payment:We can accept payment methods: L/C, T/T, Western Union,other payment can negotiation

We provide the resonable price at high quality, if more info, please email me,
email:sales009(at)aobest.cn
whatsapp:+8615717092976
wechat:15717092976

Our Company


Zhengzhou Aobest Electronic Technology Co., Ltd. is a professional company, located in Zhengzhou, China. We provide power cables and wires. We are a manufacturer producing wire and cables in China. Quality goes first, we pay highly attention to it. For every step we have the strict quality control and inspection. Every month we have 30containers exported and have the long term and stable customers.

FAQ


Q: Could you offer the Type Test Report?
A -Yes, we could offer the Type Test Report issued by Chinese laboratories.

Q:Have you ever supplied the cables to our country?
A: -Our cables have been supplied to many countries and regions, such as, Singapore, Taiwan, Hong Kong, Kenya, Congo, France, Cyprus, Honduras, etc.

Q: According to which standards can you produce cables?
A: -GB/T, IEC, EN.

Q: What is your MOQ?
A: -The MOQ is different, as the different cable type.

Q: Do you have ready cables?
A: -Some normal cables have the inventory, most cables are produced according to your requirements.

Q: What's the tolerance of delivery length for each coil?
A: -0.005m.

Q: What are your main products?
A: -Our main products are the PVC insulated cable, power cable, and electric wire.
