Pay Later PV Cable Solar Cable single core 4mm for solar power system

FOB Reference Price:Get Latest Price
$0.10 - $5.00 / Meter | 1000 Meter/Meters (Min. Order)
Lead Time:
Quantity(Meters) 1 - 50000 >50000
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Aobest
Model Number:
AOBEST09894
Type:
Low Voltage
Application:
Industrial, solar energy system
Conductor Material:
Tinned Copper
Jacket:
XLPE
Insulation Material:
XLPE
Product name:
Solar Cable
Certificate:
ISO CCC CE
Standard:
BS IEC ASTM DIN
MOQ:
1000Meters
Package:
Wodden Reel
Supply Ability
Supply Ability:
50000 Meter/Meters per Month
Packaging & Delivery
Packaging Details
export standard by coil or steel-wooden drum or as your request!
Port
Qingdao or Shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Meters) 1 - 50000 >50000
Est. Time(days) 15 To be negotiated
Video Description
Product Description

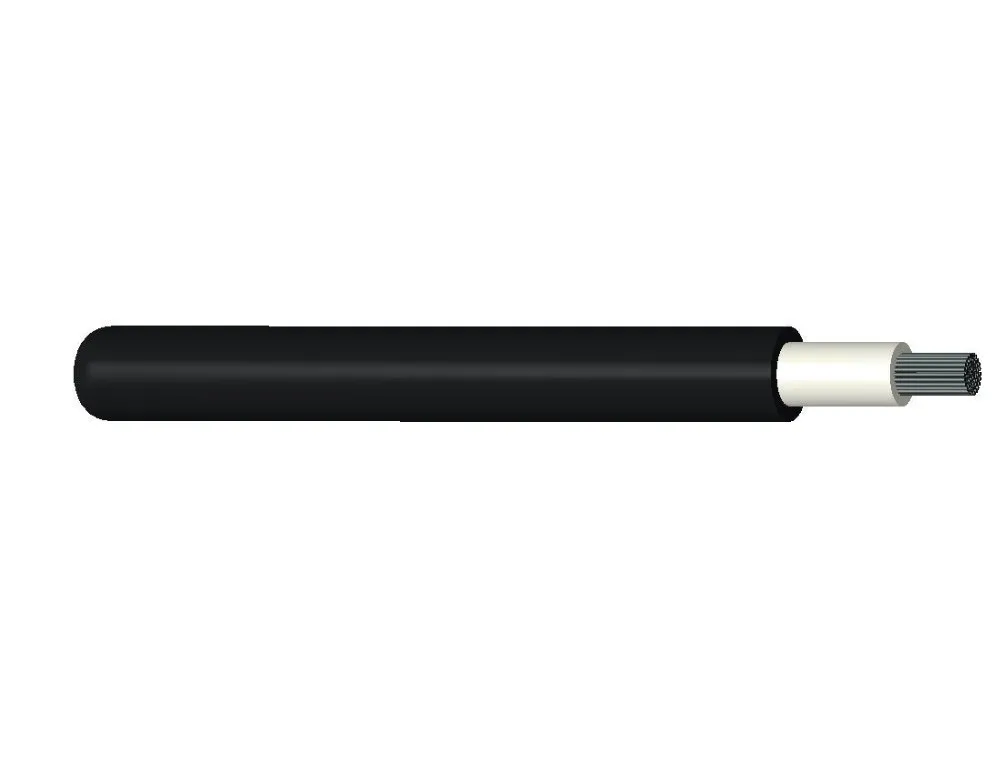

 PV Cable Solar Cable single core 4mm for solar power system


Description
Solar or PV cable is typically referred to as USE-2 cable. USE-2 stands for Underground Service Entrance and the -2 refers to the cable being rated to 90⁰C and that it can be used in a wet environment.

Application
Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .

Characteristics
1. Rated voltage
A.C. 0.6/1KV
D.C. 1500V
Max. voltage D.C. 1.8kv
2. Permissible ambient temperature
-40°C up to +90°C
3. Max. conductor temperature
at normal operation 120 °C
at short/circuit operation 200 °C
4. The min. Bending radius
4XD ( Note: D is for overall diameter of cable)
5. The min. thermal life
25 years
6. Free halogen, flame retardant
7. Weathering resistant, UV resistant, ozone erosion resistant, anti-penetration
Detailed Images

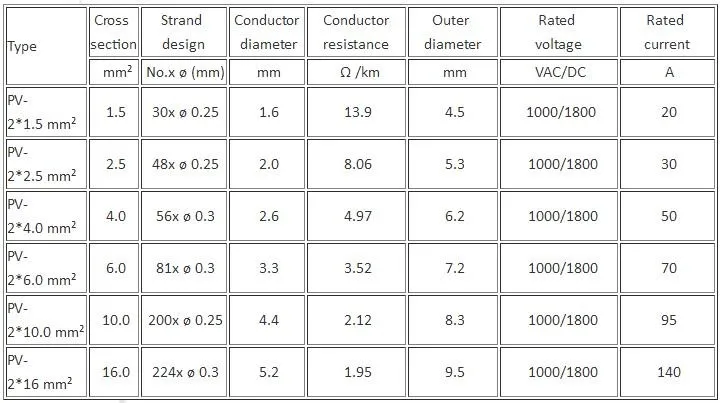

PV Solar cable specification:

Packing & Delivery
Related Products
Our Service

*Any inquiries will be replied within 24 hours.

*OEM/ODM available.
      1) Printing your logo on the cable.
      2) Printing your logo on the pull box, wooden drum according to your design
      3) Any your idea on cable, packing box are available.
*High quality, reasonable and competitive price, fast lead time.
      1) All products will have been strictly Quality Checked in house before packing.
      2) All products will be well packed before shipping.
*Faster delivery.:Sample order in stock, and 3-7 days for bulk production.
*Strong technical support (technical data, drawing, etc.)
*Free sample is available with economic express fee.
*Payment:We can accept payment methods: L/C, T/T, Western Union,other payment can negotiation.

Our Company

Zhengzhou Aobest Electronic Technology Co., Ltd. is a professional company, located in Zhengzhou, China. We are a manufacturer producing wire and cables in China. Quality goes first, we pay highly attention to it. For every step we have the strict quality control and inspection.

FAQ

Q: Could you offer the Type Test Report?

A -Yes, we could offer the Type Test Report issued by Chinese laboratories.

Q:Have you ever supplied the cables to our country?
A: -Our cables have been supplied to many countries and regions, such as, Singapore, Taiwan, Hong Kong, Kenya, Congo, France, Cyprus, Honduras, etc.

Q: According to which standards can you produce cables?
A: -GB/T, IEC, EN.

Q: What is your MOQ?
A: -The MOQ is different, as the different cable type.

Q: Do you have ready cables?
A: -Some normal cables have the inventory, most cables are produced according to your requirements.

Q: What's the tolerance of delivery length for each coil?
A: -±0.005m.


Q: What are your main products?
A: -Our main products are the PVC insulated cable, power cable, and electric wire.
