Hot Selling Factory Direct TC90 aluminum alloy wire cable - aluminum non armoured power cables

FOB Reference Price:Get Latest Price
$5.00 - $700.00 / Kilometer | 1 Kilometer/Kilometers (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Aobest
Model Number:
YJHLV
Conductor Material:
aluminum alloy
Jacket:
PVC
Insulation Material:
XLPE
Product name:
High quality TC90 aluminum alloy wire cable
Color:
Requirement
Certificate:
ISO9001/ISO14001 /OHSAS18001/CCC
Conductor:
aluminum alloy
Insulation:
XLPE Insulation
Name:
aluminum alloy wire cable
Core:
Multi-core
Supply Ability
Supply Ability:
500 Kilometer/Kilometers per Week
Packaging & Delivery
Packaging Details
export standard wooden drum or as your request
Port
Qingdao or Shanghai
Lead Time :
within 10 days for one container

Hot Selling Factory Direct TC90 aluminum alloy power cable - aluminum non armoured power cables



Product Description


1. Description:

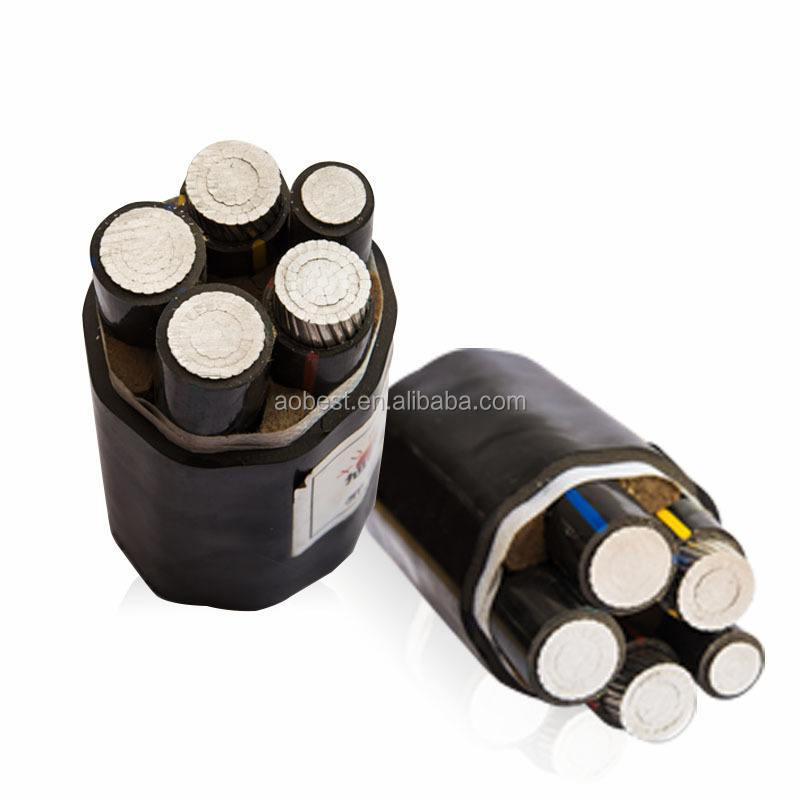

TC90---Non armoured , XLPE insulation PVC sheath aluminum alloy power cable

2. Applications:

The unarmored cable is applicable for aluminum alloy conductor and sectional area from 16mm2 to 400mm2.The type of core conductor is ASTM Grade B compacted,stranded conductor,which comes to GB/T 1838.3-2001 flame retardant Grade C.

Aluminum alloy cable is in great compliance with GB3956,GB12706.1 and various standards of the latest editon of IEC60502.1Aluminum alloy cable can be used widely on condition that there is no armored mechanical protection.They can be used for feeder lines such as in office building ,hotels, shopping center and factory lighting,socket and other electrical equipment.Aluminum alloy cable is applicable for using working temperature 90ºC,XLPE insulation,and black PVC outer sheath.

3. Construction
Copper conductor8030 Aluminum Alloy Conductor
InuslationXLPE insulation
ArmoredNon armored
SheathPVC


4. Standard
IEC60502.1  other standard like AS/NZS, BS, DIN,upon request

5. Specification

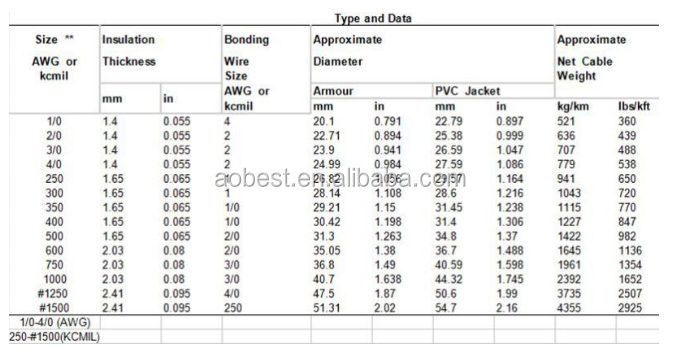

6. Technical data:
Shaped extruded aluminum alloy conductor
Flame retardant XLPE insulation
Corrugated polyester tape wrapped
PVC or polyolefin sheath

5000V and above using the . Outer shield
