Aluminum bare aerial conductor

FOB Reference Price:Get Latest Price
$0.50 - $3.00 / Meter | 100 Meter/Meters (Min. Order)
Lead Time:
Quantity(Meters) 1 - 59999 >59999
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
Aobest
Model Number:
Bare conductor
Type:
Low Voltage
Application:
Overhead
Conductor Material:
Aluminum
Jacket:
Bare
Product name:
Aluminum bare aerial conductor
Standard:
IEC
Certificate:
ISO
Conductor:
Alulminum
Package:
Wooden Drum
Keywords:
AAC\AAAC\ACSR
Supply Ability
Supply Ability:
50 Kilometer/Kilometers per Month Aluminum bare aerial conductor
Packaging & Delivery
Packaging Details
export standard by wooden drum or as your request !
Aluminum bare aerial conductor
Port
Qingdao or Shanghai

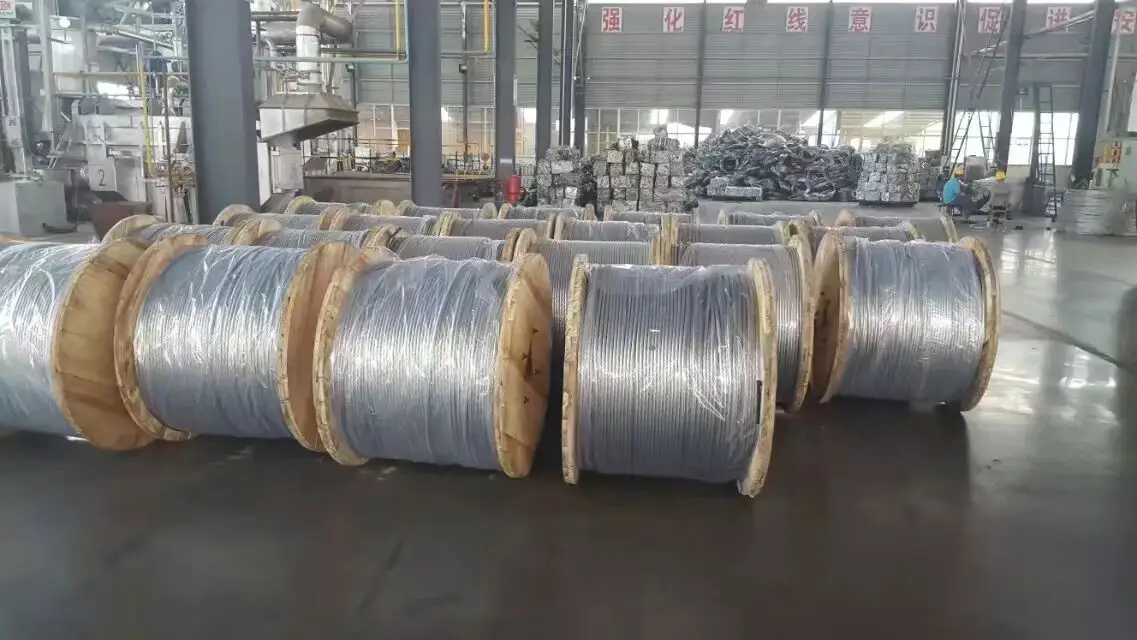

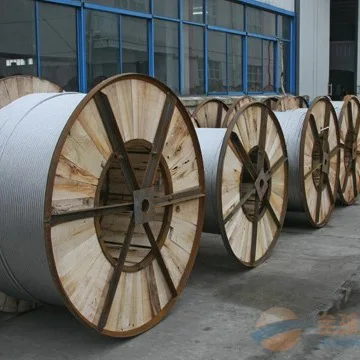

Picture Example:
package-img
Lead Time :
Quantity(Meters) 1 - 59999 >59999
Est. Time(days) 15 To be negotiated
Video Description

Aluminum bare aerial conductor

1. Applications



AAAC,AAC,ACSR,AACSR,ACSR/AW Conductors have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.







2. Products range



 1)AAAC(All Aluminum Alloy Conductors)



2)ACSR(Aluminum Conductor Steel Reinforced)



3)AAC(All Aluminum Conductors)



4)AACSR(Aluminum Alloy Conductors Steel Reinforced)



5)ACSR/AW(Aluminum Conductor Aluminum Clad Steel Reinforced)







3.Standard



AAAC,AAC,ACSR,AACSR,ACSR/AW Conductors can be produced fully in accordance with international standard such as  IEC,BS,ASTM,DIN,JIS,NF,CSA,AS/NZS.



The data sheets below show the most common standards, British standard and IEC standard.
IEC Sizes IEC 61089

Code Number

Stranding&wire diameter

Approx Overall diameter

Nominal

Approx.

Breaking Load

DC Resistance at 20

area

Weight

mm

mm

mm 2

Kg/km

KN

Ohm/km

16

7/1.83

5.49

18.4

50.4

5.43

1.7896

25

7/2.29

6.86

28.8

78.7

8.49

1.1453

40

7/2.89

8.68

46

125.9

13.58

0.7158

63

7/3.63

10.9

72.5

198.3

21.39

0.4545

100

19/2.78

13.9

115

316.3

33.95

0.2877

125

19/3.10

15.5

144

395.4

42.44

0.2302

160

19/3.51

17.6

184

506.1

54.32

0.1798

200

19/3.93

19.6

230

632.7

67.91

0.1439

250

19/4.39

22

288

790.8

84.88

0.1151

315

37/3.53

24.7

363

998.9

106.95

0.0916

400

37/3.98

27.9

460

1268.4

135.81

0.0721

450

37/4.22

29.6

518

1426.9

152.79

0.0641

500

37/4.45

31.2

575

1585.5

169.76

0.0577

560

61/3.67

33

645

1778.4

190.14

0.0516

630

61/3.89

35

725

2000.7

213.9

0.0458

710

61/4.13

37.2

817

2254.8

241.07

0.0407

800

61/4.38

39.5

921

2540.6

271.62

0.0361

900

91/3.81

41.8

1036

2861.1

305.58

0.0321

1000

91/4.01

44.1

1151

3179

339.53

0.0289

1120

91/4.25

46.7

1289

3560.5

380.27

0.0258

1250

91/4.49

49.4

1439

3973.7

424.41

0.0231











If you need , contact us ,we will offer you a competitive price with good quality cable and wire! sales009(at)aobest.cn
