China top-quality best price underground 33kv cable

FOB Reference Price:Get Latest Price
$1.00 - $20.00 / Meter | 500 Meter/Meters (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
Aobest
Model Number:
power cable
Type:
Insulated
Application:
Underground
Conductor Material:
Copper
Conductor Type:
Stranded
Insulation Material:
XLPE
Name:
China top-quality best price underground 33kv cable
Color:
Requirement
Certification:
CE /CCC/ISO9001/ISO14001/OHSAS18000/ASG/CNAS/MA
Standard:
IEC 60227
Rated Voltage:
11kv, 33kv
Conductor:
Pure Copper
Insulation:
PVC Rated
Feature:
High Voltage High Temperature Wire
Packing:
Wooden Drum
Warranty:
25 years
Supply Ability
Supply Ability:
500 Kilometer/Kilometers per Week
Packaging & Delivery
Packaging Details
export-standard packing by wooden drum or steel wooden ddrum or as your special requirement
Port
Qingdao or Shanghai or Shenzhen
Lead Time :
Shipped in 10 days after payment

China top-quality 11kv and 33kv underground cable :



XLPE cable used to transmit and distribute power in power transmission and distribution system of 35kV or lower


Product Description

power cable:

Al/CU Conductor XLPE/PVC Insulated Thin/Thick steel armored PE Sheathed Power Cable.
AL/CU,XLPE/PVC,SWA/DSTA,PVC/PE

Al/CU Conductor XLPE/PVC Insulated Thin/Thick steel armored PE Sheathed Power Cable. AL/CU,XLPE/PVC,SWA/DSTA,PVC/PE
Relative manufacturing standards: IEC60505, BS, DIN,ASTM,JIS or other standards.

Application:
It is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable.
Using features:
1. Rated voltage: Uo/U: 26/35kV, 21/35kV, 12/20 kV (24 kV), 8.7/10kV, 8.7/15kV, 6/6kV, 6/10kV and 0.6/1kV.
2. No. Of core: Single-core, Two-core,Three-core,Four-core,Five-core,Six-core.
3. The highest allowed operating temperature of conductor for long-term working is 90oC. In short-circuit (Max. Long-term is no more than 5 seconds). The highest temperature for conductor is no more than 250 degree.
4. D. C. Resistance of the conductor complies with the stipulations of international standar.
5. The environment temperature should be no lower than zero degree when lay. Otherwise it should be preheated.
6. The cable is laid without horizontal drop limit. The Min. Bending radius of cables should be no smaller than 12 times of cable outer diameter.
7. Working Frequency Voltage Test:
For cable with Uo of 3.6kV or lower: 2.5Uo+2kV/5min without puncture.
For cable with Uo of 3.6Kv~18kV: 3.5Uo/5min without puncture.
For cable with Uo of 21kV and 26 kV: 2.5Uo/30min without puncture.
8. Partial Discharge Test: The discharge volume should be no more than 10pC under 1.73Uo for the cable

This series includes:

Copper (aluminum) conductor, XLPE/PVC insulated ,PVC sheathed power cables
Copper (aluminum) conductor, XLPE/PVC insulated, PE sheathed power cables
Copper (aluminum) conductor, XLPE/PVC insulated, steel tape armoring(DSTA) PVC sheathed power cables
Copper (aluminum) conductor, XLPE/PVC insulated, steel tape armoring(DSTA), PE sheathed power cables
Copper (aluminum) conductor, XLPE/PVC insulated, steel wire armoring(SWA), PVC sheathed power Cables
Copper (aluminum) conductor, XLPE/PVC insulated, steel wire armoring(SWA), PE sheathed power cables

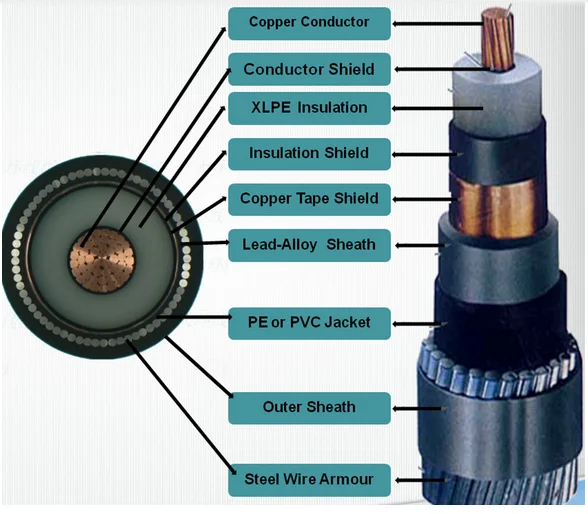

-Conductor: Solid or stranded copper
-Insulation: Cross-linked polyethylene/ polyvinyl chloride ( XLPE or PVC)
-Circuit Identication: The insulation shall be red, black or other colors.
-Filler: Polypropylene with lapped binding tape
-Inner Sheath: Polyvinyl chloride (Black)
-Armor: Galvanized steel wire or double steel tape armor
-Core-covering: Binding tape
-Outer Sheath: Polyvinyl chloride/ (Black)



Type

Description

Application

Cu core

Al core

YJV

YJY

YJLV

YJLY

XLPE insulated,PVC or PE sheathed power cable

For laying indoor, tunnel, channel and underground. Unable to bear external mechanical forces,but bear the traction force during laid

YJLV22

YJV23

YJV22

YJV23

XLPE insulated, steel tape armored,PVC or PE sheathed power cable

For laying indoor, tunnel, channel and underground. Able to bear external mechanical forces, but unable to bear large pulling force

YJLV32

YJLV33

YJV32

YJV33

XLPE insulated, fine steel wire armored, PVC or PE sheathed power cable

For laying in shaft, with large difference of level.able to bear external machinery forces and moderate pulling force.

YJLV42

YJLV43

YJV42

YJV43

XLPE insulated, thick steel wire armored,PVC or PE sheathed power cable

Able to bear positive pressure and pulling force




33kv 1x150 cable_.jpg1x400 steel wire armoured cable 33kv_.jpg

Packaging & Shipping
Our Services

 Our company is a professional supplier of various kinds of cables for over 10 years.

The quality of our products are guaranteed. They are all with CCC, CE, CB and RoHS certificates.

  •  Any inquiries will be replied within 24 hours.
  •  OEM/ODM available.

     1) Printing your logo on the cable.

     2) Printing your logo on the pull box, wooden drum according to your design

     3) Any your idea on cable, packing box are available.

  • High quality, reasonable and competitive price, fast lead time.
  •  Good after-Sale Service.

    1) All products will have been strictly Quality Checked in house before packing.

    2) All products will be well packed before shipping.

  •  Faster delivery.:Sample order in stock, and 3-7 days for bulk production.
  • Strong technical support (technical data, drawing, etc.)
  •  Free sample is available with economic express fee.

Payment:We can accept payment methods: L/C, T/T, Western Union,other payment can negotiation.



Company Information



About Us:

Zhengzhou Aobest Electronic Technology Co., Ltd. is a professional company, located in Zhengzhou, China. We provide power cables and wires.

Our main products: High and low voltage XLPE insulated Cables, PVC insulated cables, steel wire armored cables, steel tape armored cables, ABC cables, Overhead insulated cables, AAC, AAAC & ACSR cables, Copper wires, Galvanized steel wire strands, PVC insulated wires and flexible wires, Rubber insulated cables, underground cables, control cables, aluminum sheets, etc.

The international standard we can follow: ASTM, IEC, BS, GB, DIN and AS/NZS standards and other standards.

We can provide OEC service.

Since our establishment, we have insisted on the tenet of "scientific management" and tried our best to improve product quality. We control every chain especially the process of production strictly, ensuring the unqualified raw materials and semi-finished products not enter into the next operation. We guarantee that all the finished products meet the requirements of our clients.

Our sales networks cover the whole world. Our products sell well in Australia, the Philippines, Vietnam, Thailand, Myanmar, Kenya, South Africa, Nigeria, Tanzania, the USA, Singapore, the UK, Italy, Bolivia, Chile and European countries. Our company has established long-term cooperation and friendship with clients worldwide.

initpintu_

FAQ
  •  Q: Could you offer the Type Test Report?
  • A  -Yes, we could offer the Type Test Report issued by Chinese laboratories.
  • Q:Have you ever supplied the cables to our country?
  • A:  -Our cables have been supplied to many countries and regions, such as, Singapore, Taiwan, Hong Kong, Kenya, Congo, France, Cyprus, Honduras, etc.
  • Q: According to which standards can you produce cables?
  • A:   -GB/T, IEC, EN.
  • Q: What is your MOQ?
  • A:    -The MOQ is different, as the different cable type.
  • Q: Do you have ready cables?
  • A:  -Some normal cables have the inventory, most cables are produced according to your requirements.
  • Q: What's the tolerance of delivery length for each coil?
  •  A:   -±0.005m.
  • Q: What are your main products?
  • A:  -Our main products are the PVC insulated cable, power cable, and electric wire.
