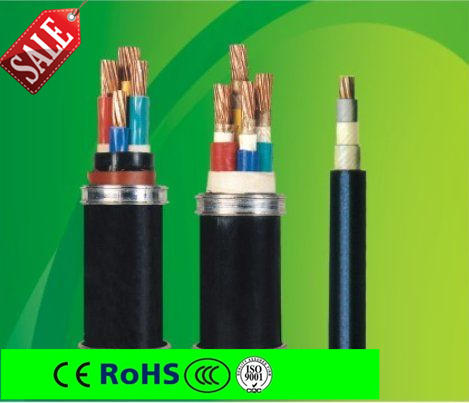

flame retardant medium voltage screened power cable(18/35kv)

FOB Reference Price:Get Latest Price
$1.00 - $50.00 / Meter | 300 Meter/Meters (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
Aobest
Model Number:
cu/xlpe/s/t/swa/pvc
Type:
Medium Voltage
Application:
Underground
Conductor Material:
Copper
Jacket:
PVC
Insulation Material:
XLPE
Name:
Electric Power Cable
Color:
Requirement
Certificate:
ISO9001:2008 CCC
Standard:
IEC60502
Voltage:
0.6/1
Core:
Multi-core
Sheath:
PVC PE
Armour:
Steel Tape Armour
Packing:
Wooden-steel Drum
Warranty:
10 Years
Supply Ability
Supply Ability:
5000 Kilometer/Kilometers per Week
Packaging & Delivery

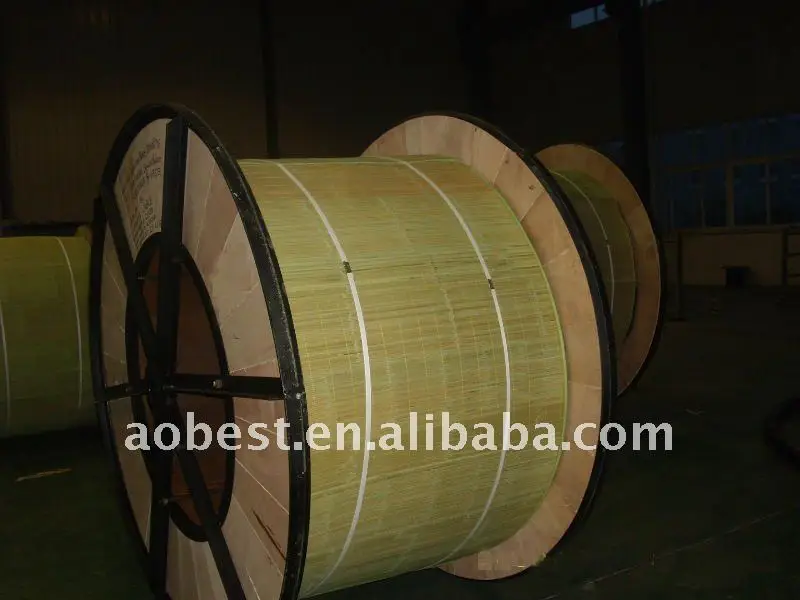

Packaging Details
export standard by steel-wooden drum or wooden drum
Port
Qingdao or Shanghai

Rating Voltage 6/6kv~26/35kv XLPE insulated yjv cable



Standard GB/T12706-2002, or design and produce as per client’s request.


Application performance: this products is suitable for power transmission and distribution rating voltage 6/6kv-26/35kv

  1. Max permissible operating temperature 90centigrade
  2. Max short circuit temperature(5 seconds at longest) shall not exceed 250centigrade
  3. The ambient temperature under installation should not below 0centigrade,if not, please heating in advance.
  4. Permissible bending radius ≥12 times of outer diameter of conductors

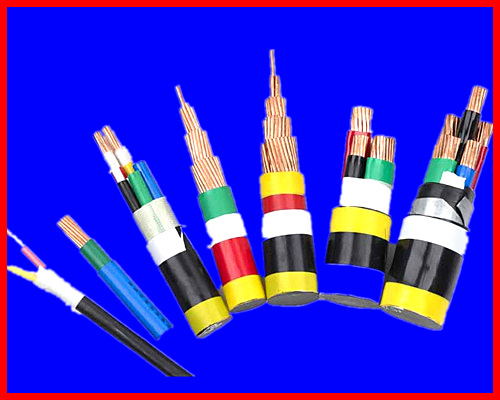

     Model, Name and Application

 Model

Name

Application

 Cu

 Al

YJSV

YJLV

XLPE insulated PVC sheathed power cable

For laying aerial indoors , in-tunnel or cable trench

YJSY

YJLY

XLPE insulated PE sheathed power cable

YJSV22

YJLV22

XLPE insulated steel tape armored PVC sheathed power cable

For laying indoors , intunnel or cable trench

YJSV23

YJLV23

XLPE insulated steel tape armored PE sheathed power cable

YJSV32

YJLV32

XLPE insulated thin steel wire armored PVC sheathed power cable

For laying high-drop, well or underwater

YJV33

YJLV33

XLPE insulated thin steel wire armored PE sheathed power cable

YJV42

YJLV42

XLPE insulated thick steel wire armored PVC sheathed power cable

Able to bear external mechanical forces, for laying in silo into sea

YJV43

YJLV43

XLPE insulated thick steel wire armored PE sheathed power cable
