Overhead ABC Cable 10kv for South Africa

FOB Reference Price:Get Latest Price
$10.00 - $1,000.00 / Kilometer | 10 Kilometer/Kilometers (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
AOBEST
Model Number:
ABC ASTM IEC
Type:
Medium Voltage
Application:
Overhead
Conductor Material:
Copper & Aluminum
Jacket:
PVC
Insulation Material:
XLPE
Product name:
Overhead ABC Cable 10kv
Certificate:
ISO
Standard:
IEC
Supply Ability
Supply Ability:
10000 Kilometer/Kilometers per Week
Packaging & Delivery
Packaging Details
export standard by wooden drum or as your request !
Port
Qingdao or Shanghai

Overhead ABC Cable  10kv

Cables for overhead installations may be used in different types of installations: on free hanging facades between posts; on fixed facades; trees and poles. Interception of forest areas without the need of clearance and maintenance of openings is allowed.

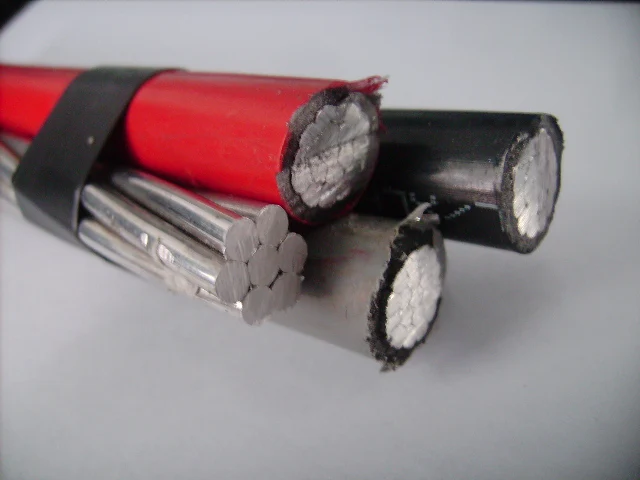

  - Cables with supporting zero conductor, the whole bundle is suspended and carried by the supporting conductor, which is made of aluminum compound.
  - Self-supporting construction, suspension and carrying of the whole bundle is done by the phase insulated conductors.
  Bundles can include one or two additional conductors for public lighting and control pair.

Specification: Aerial Bundle Cable
Voltage: 10 KV
Conductor: Aluminum conductor, AAC, ACSR, AAAC
Insulation: XLPE
Application: New type of Aerial Bundle Cable for Power transmission, used for rebuilding of urban and forest regions, which can improve safety and reliance of electrified wire netting.

Nominal Cross-sectional Area

Nominal Thickness of Insulation

Approx. OD.

Max. Resistance of Conductor at 20 °C

Min. Breaking Load of Cable

Approx. Weight of Completed Cable

mm2

mm

mm

Ω/km

N

Kg/km

35

3.4

14.8

0.868

7011

300.8

50

3.4

16.1

0.641

7

359.8

70

3.4

17.8

0.443

10354

441

95

3.4

19.6

0.32

13727

548

120

3.4

21

0.253

17339

643

150

3.4

22.6

0.206

21033

753.6

185

3.4

24.2

0.164

26732

877.3

240

3.4

26.4

0.125

34679

1061.3

300

3.4

28.6

0.1

43349

1263.7

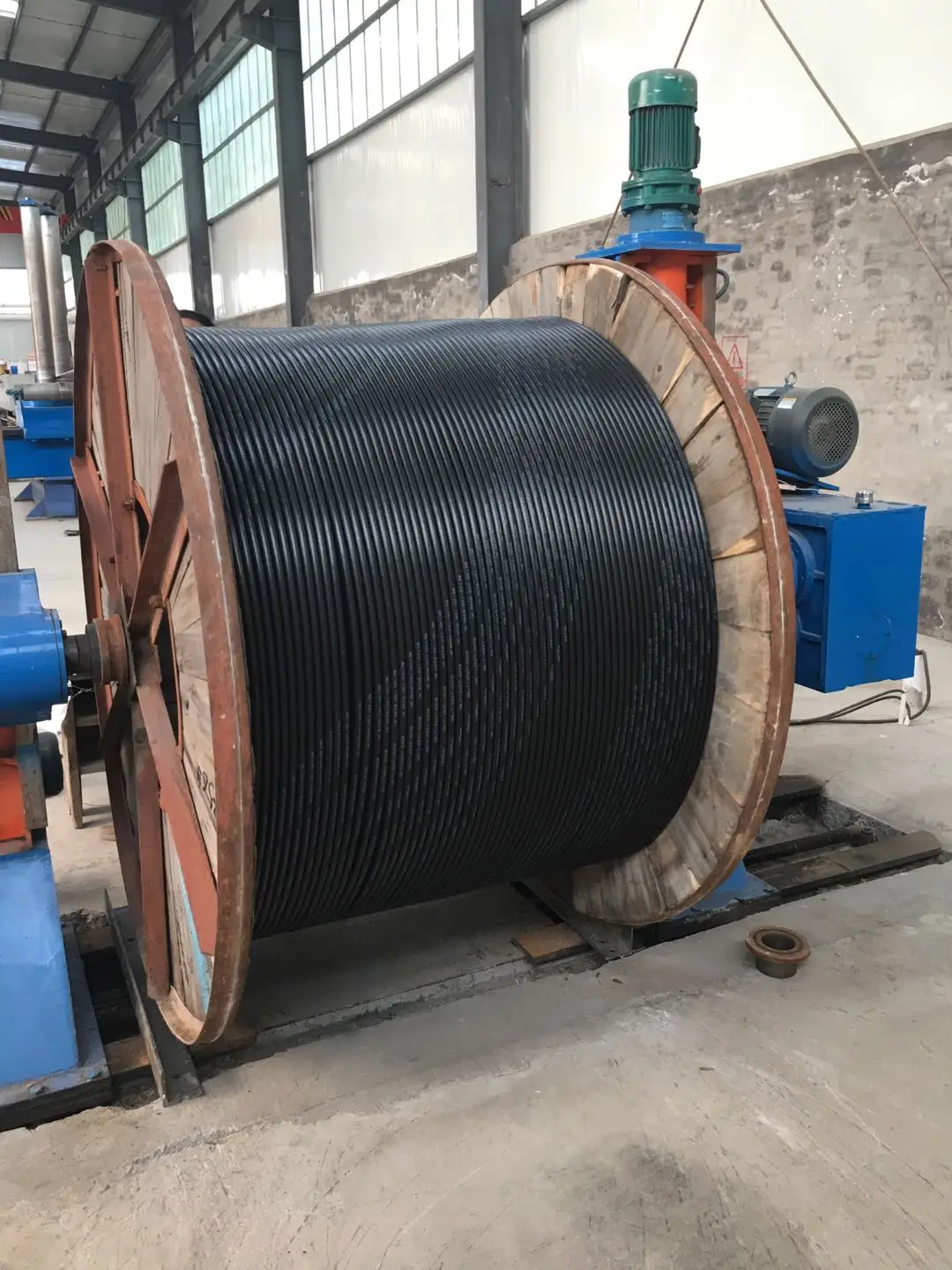

2fe59493-0e23-415c-bf47-c31aeb44d305.jpgBC-Cable.jpgABC-Cable2.jpg_20180714111039.jpg389620946_543.jpg



If you need , contact us ,we will offer you a competitive price with good quality cable and wire! sales009(at)aobest.cn
