Quick Details

  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Aobest
  • Model Number: Power Cable
  • Insulation Material: XLPE
  • Type: High Voltage
  • Application: Underground
  • Conductor Material: Copper
  • Jacket: PVC
  • Product name: 1kv to 35 kv XLPE Insulated Steel Wire Armored power cable
  • sheath colour: black or red
  • voltage: 1kv-35kv
  • keywords: power cable
  • Certificate: ISO9001/ISO14001 /OHSAS18001/CCC
  • Color: Requirement
  • Standard: BS IEC ASTM DIN
  • Sheath: Flame Retardant PVC
  • Package: Wooden Steel Drum
  • Warranty: 10 Years

Packaging & Delivery

Packaging Details: 1:steel wooden drum
2:according to customer requirments.
Delivery Detail: within 15 days for one container

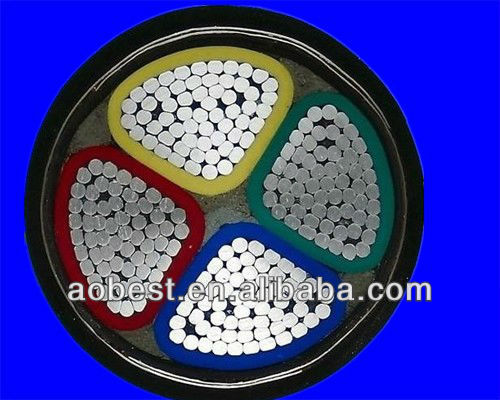

1kv to 35 kv XLPE Insulated Steel Wire Armored power cable

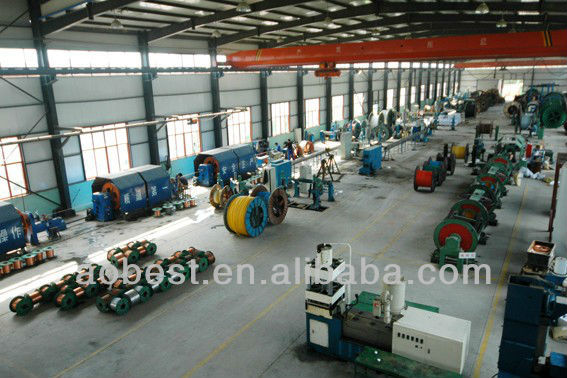

Company Profile:

Zhengzhou Aobest Electronic Technology Co., Ltd is a top manufacturer for Power cables and Electric wires for more than 20 years in China.



Our main products include as belows:

1: AAC, ACSR, AAAC, guy wire

2: PVC insulated power cables.
3: XLPE insulated power cables
4: Armored power cables
5: Overhead insulated cables
6: Electric wires
7: Control cables and other instrument cables


Product Description

With the characteristics of stable performance,advanced technology,broad materials resources,low prices,good flexible and easy to lay and maintain, the polyvinyl chloride insulated power cable is used in fixing lay-up on transmission and distribution electric lines of 50 Hz A.C rated voltage 10 KV or below.



Ⅱ,Application properties

1,Long term permissible working temperature of cable conductive core is not more than 70°C.

2,During short circuit (maximum permanent time is not more than 5 seconds),Temperature of cable conductor is not more than 165°C.

3,The difference level of lay-up cable is not restricted. When laying the cable, temperature of laying is not low than 0°C.

4,They have a good chemical stability, acid resistance, alkali resistance, salt resistance, oil resistance, solvent resistance and flame retardant properties..

5,Light weight, good bending properties and easy to install and maintenance:

Description and Type

Type

Name

Application

VV VLV

Copper(aluminum)core, PVC insulated

and sheathed power cable

Mainly laid indoors. Channels, cable slot, tube and

other places which can not bear greater pulling

and pressure force.

VY VLY

Copper(aluminum)core, PVC insulated,

PE  sheathed power cable

VV22 VLV22



Copper( aluminum)core, PVC insulated, steel tape

armoring PVC sheathed power cable

The cables can be laid indoors, in channels, cable slot

and direct burial. The cable can bear  mechanical force

but can not bear greater pulling force.

VV23 VLV23

Copper(aluminum)core, PVC insulated, steel tape

armoring PE sheathed power cable

VV32 VLV32

Copper(aluminum)core, PVC insulated, fine steel wire

armoring PVC sheathed power cable

Laid indoors, in mining well and water, can bear

mechanical force and pulling force.

VV33 VLV33

Copper(aluminum)core, PVC insulated, fine steel wire

armoring PE sheathed power cable

VV42 VLV42

Copper(aluminum)core, PVC insulated, thick steel wire

armoring PVC sheathed power cable

Laid indoors, in mining well and water, bear greater

pulling force.

VV43 VLV43

Copper(aluminum)core, PVC insulated, thick steel wire

armoring PE sheathed power cable

As above



Specifications



Nominal cross sectional area of conductor(mm2)



Insulation thickness

(mm)



Sheath thickness

(mm)



Approx overall diameter of cable(mm)



Approx

Weight of cable

(kg/m)





Testing volatge

A.C



Cu

Al

(KV/5min)

3*4+1*2.5

3*6+1*4

0.7

0.7

1.5

1.5

13

14

236

316

147

187

3.5

3.5

3*10+1*6

3*16+1*10

0.7

0.7

1.5

1.5

16

18

461

679

234

322

3.5

3.5

3*25+1*16

3*35+1*16

0.9

0.9

2.0

2.0

22

24

1065

1360

505

615

3.5

3.5

3*50+1*25

3*70+1*35

1.0

1.1

2.0

2.0

28

31

1901

2585

816

1085

3.5

3.5

3*95+1*50

3*120+1*70

1.1

1.2

2.0

2.5

36

40

3518

4443

1440

1766

3.5

3.5

3*150+1*70

3*185+1*95

1.4

1.6

2.5

3.0

44

48

5326

6682

2100

2650

3.5

3.5

3*240+1*120

3*300+1*150

3*400+1*240

1.7

1.8

2.0

3.0

3.1

3.1

53

57

60

8501

11155

14470

3291

4440

5392

3.5

3.5

3.5



 4x4, 4x10, 4x16, 4x25, 4x35, 4x50, 4x70, 4x95, 4x120, 4x150, 4x185, 4x240, 4x300



Packaging & Shipping

1:steel wooden drum
2:according to customer requirments.


Our Services

Our company is a professional supplier of various kinds of cables for over 15 years.

The quality of our products are guaranteed. They are all with CCC, CE, CB and RoHS certificates.

  •  Any inquiries will be replied within 24 hours.
  •  OEM/ODM available.

     1) Printing your logo on the cable.

     2) Printing your logo on the pull box, wooden drum according to your design

     3) Any your idea on cable, packing box are available.

  • High quality, reasonable and competitive price, fast lead time.
  •  Good after-Sale Service.

    1) All products will have been strictly Quality Checked in house before packing.

    2) All products will be well packed before shipping.

  •  Faster delivery.:Sample order in stock, and 3-7 days for bulk production.
  • Strong technical support (technical data, drawing, etc.)
  •  Free sample is available with economic express fee.
  • Payment:We can accept payment methods: L/C, T/T, Western Union,other payment can negotiation.



Company Information



FAQ



  • Q: What are your main products?
  • A:  -Our main products are the PVC insulated cable, power cable, and electric wire.
  • Q:Have you ever supplied the cables to our country?
  • A:  -Our cables have been supplied to many countries and regions, such as, Singapore, Taiwan, Hong Kong, Kenya, Congo, France, Cyprus, Honduras, etc.
  • Q: According to which standards can you produce cables?
  • A:   -GB/T, IEC, EN.
  • Q: What is your MOQ?
  • A:    -The MOQ is different, as the different cable type.
  • Q: Do you have ready cables?
  • A:  -Some normal cables have the inventory, most cables are produced according to your requirements.
