0.6/1KV 3+1-core XLPE Insulated PVC fire-resistant power cable NO.of Core:3+1 Rated power-frequency voltage U./U:0.6/1KV Nominal Cross-sectional area:95mm2 Approx.overall diameter of cable:40.7mm
Approx.weight of cable:3845kg/km
Standards The product is manufactured according to the standard of GB/12706 or IEC,BS,DINICEA and
JIS upon request. Application The product is suitable for use in power distribution lines or fixed
installations with rated power-frequency voltage up to and including 35KV.
Operating Characteritics 1.Max.permissible continuous operating temperature of conductor(PVC/XLPE):70°C/90°C 2.Max.short-circuit temperature of conductor shall not exceed(5s maximumduration) PVC:160°C XLPE:250°C 3.The ambient temperature under in installation shall not below 0°C 4.The bending radius of single-core shall not less than 20 times of the cable
diameter;The bending radius of multicore=cable should not less than 15 times of the
The rated voltage of the cable for a given application shall be suitable for the
operating conditions in the system im which the cable is used,and is expressed in
the form of U./U(Um)KV.Where: U.-The rated power-frequency voltage between conductors and screen or metallic-
sheath,for which the cable designed; U-The rated power-frequency voltage between conductors,for which the cable designed; Um-The maximum value of the "highest system voltage"for which the equipment may be
The product has high fire-resistant ability. When cable is on fire, break-circuit or short-circuit failure will not occur in a certain period of time. It is helpful to extinguish fire and reducing damage in case of fire disaster. It is used in the electrical equipment and control system where fire danger exists and fire-proof safety is highly required.
No: of cable cross: 1 core(Single core),2cores(Double cores),3cores, 4cores(4 equal-section-area cores OR 3 equal-section-area+1 small section area neutral core),5cores(5 3 equal-section-area cores+2 small area neutral cores OR 4 equal-section-area +1 small area neutral cores).We provide armored type and non-armored type for the cables stated above.
Packaging & Shipping
Packaging & Delivery
Export standard Steel wooden Drum
Complying with the clause of the contract
Our company is a professional supplier of various kinds of cables for over 10 years.
The quality of our products are guaranteed. They are all with CCC, CE, CB and RoHS certificates.
Any inquiries will be replied within 24 hours.
1) Printing your logo on the cable.
2) Printing your logo on the pull box, wooden drum according to your design
3) Any your idea on cable, packing box are available.
High quality, reasonable and competitive price, fast lead time.
Good after-Sale Service.
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
Faster delivery.:Sample order in stock, and 3-7 days for bulk production.
Strong technical support (technical data, drawing, etc.)
Free sample is available with economic express fee.
Payment:We can accept payment methods: L/C, T/T, Western Union,other payment can negotiation.
Zhengzhou Aobest Electronic Technology Co., Ltd. is a professional company, located in Zhengzhou, China. We provide power cables and wires.

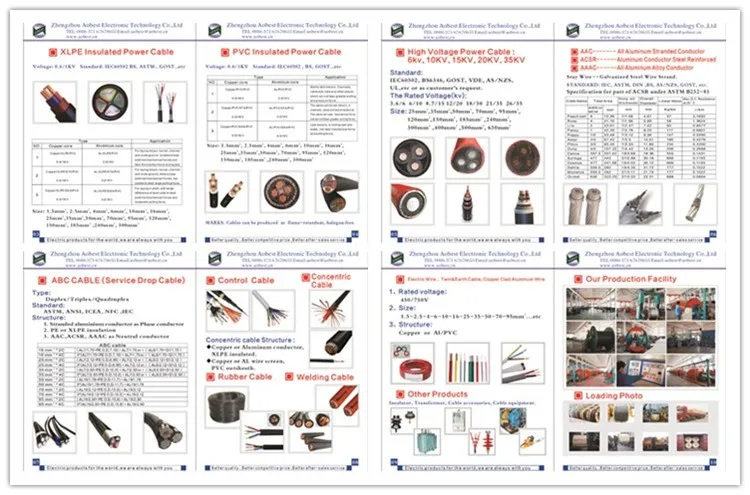

Our main products: High and low voltage XLPE insulated Cables, PVC insulated cables, steel wire armored cables, steel tape armored cables, ABC cables, Overhead insulated cables, AAC, AAAC & ACSR cables, Copper wires, Galvanized steel wire strands, PVC insulated wires and flexible wires, Rubber insulated cables, underground cables, control cables, aluminum sheets, etc.
The international standard we can follow: ASTM, IEC, BS, GB, DIN and AS/NZS standards and other standards.
We can provide OEC service.
Since our establishment, we have insisted on the tenet of "scientific management" and tried our best to improve product quality. We control every chain especially the process of production strictly, ensuring the unqualified raw materials and semi-finished products not enter into the next operation. We guarantee that all the finished products meet the requirements of our clients.
Our sales networks cover the whole world. Our products sell well in Australia, the Philippines, Vietnam, Thailand, Myanmar, Kenya, South Africa, Nigeria, Tanzania, the USA, Singapore, the UK, Italy, Bolivia, Chile and European countries. Our company has established long-term cooperation and friendship with clients worldwide.
Q: Could you offer the Type Test Report?
A -Yes, we could offer the Type Test Report issued by Chinese laboratories.
Q:Have you ever supplied the cables to our country?
A: -Our cables have been supplied to many countries and regions, such as, Singapore, Taiwan, Hong Kong, Kenya, Congo, France, Cyprus, Honduras, etc.
Q: According to which standards can you produce cables?
A: -GB/T, IEC, EN.
Q: What is your MOQ?
A: -The MOQ is different, as the different cable type.
Q: Do you have ready cables?
A: -Some normal cables have the inventory, most cables are produced according to your requirements.
Q: What's the tolerance of delivery length for each coil?
Q: What are your main products?
A: -Our main products are the PVC insulated cable, power cable, and electric wire.
